Toyota RAV4 Code P1155: Complete Diagnostic Guide to Air-Fuel Ratio Sensor Issues, Repair Procedures, and Cost Analysis

Modern vehicles employ sophisticated engine management systems monitoring dozens of parameters through electronic sensors feeding real-time data to the Engine Control Module (ECM) enabling precise fuel delivery, ignition timing, and emissions control that optimize performance, fuel economy, and emissions compliance while providing diagnostic capabilities alerting drivers to malfunctions before they cause catastrophic failures or leave vehicles stranded. The Toyota RAV4’s diagnostic system proves particularly comprehensive given the model’s reputation for reliability and longevity that depends partly on early problem detection and correction preventing minor issues from escalating into expensive major repairs—with the On-Board Diagnostics (OBD-II) system generating specific trouble codes when sensors or systems operate outside normal parameters requiring investigation and potential repair.

The P1155 diagnostic trouble code (DTC) represents one such alert specifically indicating malfunction in the Air-Fuel Ratio (AFR) sensor heater circuit for Bank 2 Sensor 1, signaling that the heating element responsible for bringing the oxygen sensor to optimal operating temperature isn’t functioning correctly creating situations where the sensor cannot accurately measure exhaust gas composition leading to suboptimal fuel delivery, reduced performance, increased emissions, and potential long-term engine damage if left unaddressed. Understanding what P1155 means, why it occurs, how it affects vehicle operation, proper diagnostic procedures for identifying root causes, appropriate repair strategies addressing underlying problems rather than just clearing codes, realistic cost expectations for professional repairs or DIY approaches, and preventive maintenance reducing future sensor failures proves essential for RAV4 owners encountering this common though often misunderstood trouble code.

This comprehensive guide examines every dimension of Toyota RAV4 P1155 code including detailed technical explanation of air-fuel ratio sensors and their role in engine management, specific analysis of what P1155 indicates versus related codes (P1135, P1130, P0135), systematic diagnostic procedures from basic visual inspection through advanced electrical testing, step-by-step repair procedures including sensor replacement and wiring repair, realistic cost analysis covering parts and labor for professional service versus DIY savings, model-specific considerations as sensor configurations vary across RAV4 generations, preventive maintenance strategies extending sensor life, and honest assessment of when immediate repair proves essential versus when temporary code clearing might suffice for non-critical situations. Whether you’re a RAV4 owner facing check engine lights, a DIY mechanic planning sensor replacement, or simply someone wanting to understand modern engine management systems, this guide provides complete accurate information enabling informed decisions about diagnosis, repair, and ongoing maintenance.

Understanding Air-Fuel Ratio Sensors and Engine Management

Before examining P1155 specifically, understanding how AFR sensors function and why they’re critical for modern engine operation provides essential context for appreciating both the code’s significance and appropriate responses.

The Role of AFR Sensors in Modern Engines

Air-Fuel Ratio sensors (also called wideband oxygen sensors or lambda sensors) measure the oxygen content in exhaust gases enabling the Engine Control Module to determine whether the engine runs rich (too much fuel), lean (too little fuel), or at ideal stoichiometric ratio (14.7:1 air-to-fuel for gasoline engines) where combustion efficiency and emissions control prove optimal. This real-time feedback creates closed-loop control where the ECM continuously adjusts fuel injection quantity based on AFR sensor readings maintaining precise mixture control across varying engine loads, speeds, and conditions that would otherwise cause mixture deviations affecting performance and emissions.

The sensor technology uses ceramic elements (typically zirconia or titania) that generate voltage signals correlating to exhaust oxygen concentration, with the sensor requiring elevated operating temperatures (approximately 600-800°F) to function accurately creating necessity for heating elements that bring sensors to operating temperature quickly during cold starts rather than waiting for exhaust heat alone which might require several minutes of operation. The heater circuit proves critical for emissions compliance as modern regulations require closed-loop fuel control operation beginning within seconds of engine start, impossible without heater-equipped sensors that achieve operating temperature rapidly regardless of ambient conditions or driving patterns.

The distinction between AFR sensors and traditional oxygen sensors proves important—older narrowband oxygen sensors provide simple rich/lean indication (binary output) sufficient for basic fuel control, while modern wideband AFR sensors provide continuous proportional output across wide range enabling precise measurement of actual air-fuel ratio rather than just detecting deviations from stoichiometric. This enhanced capability enables advanced engine management strategies including lean-burn operation for efficiency, precise cold-start enrichment, and sophisticated catalyst protection though the more complex sensor technology creates additional failure modes including heater circuit problems that simpler oxygen sensors didn’t experience.

Bank 2 Sensor 1: Location and Function

The “Bank 2 Sensor 1” designation follows industry-standard nomenclature where “Bank” refers to cylinder bank on V-configuration engines (inline engines technically have only one bank though terminology sometimes applies), with Bank 1 containing cylinder #1 and Bank 2 containing the opposite cylinder bank, while “Sensor 1” indicates the upstream sensor (before catalytic converter) versus downstream “Sensor 2” (after catalyst). However, the Toyota RAV4 uses inline four-cylinder engines meaning there’s no actual Bank 2 in traditional sense—the P1155 code’s “Bank 2” reference represents Toyota’s specific implementation where multiple sensors exist despite single cylinder bank configuration.

The practical RAV4 sensor configuration varies by model year and engine variant though most RAV4s equipped with AFR sensors use two sensors—one upstream (before catalytic converter) providing primary fuel control feedback, and one downstream (after catalyst) monitoring catalyst efficiency. The upstream sensor (whether called Bank 1 Sensor 1 or Bank 2 Sensor 1 depending on Toyota’s model-specific nomenclature) proves critical for fuel control and directly affects engine operation, while downstream sensor primarily serves emissions monitoring and affects only check engine light illumination rather than real-time fuel control—making the distinction between sensor positions important for understanding repair urgency and expected symptoms.

The physical location typically places upstream AFR sensors in exhaust manifold or immediately downstream (within 12-18 inches of exhaust ports) ensuring the sensor receives hot exhaust gases quickly for rapid response, while downstream sensors mount after catalytic converter in mid-pipe location. Access proves relatively straightforward on most RAV4s requiring raising vehicle on jack/stands or ramps and working from underneath, though exhaust heat shields and tight clearances sometimes complicate sensor removal particularly on higher-mileage vehicles where corrosion might seize sensor threads in exhaust manifold requiring careful extraction preventing manifold damage.

How Heater Circuits Work and Why They Fail

The AFR sensor heater circuit consists of dedicated heating element (essentially resistive wire) embedded in sensor ceramic element, power supply from vehicle electrical system (typically through relay or fuse), ground connection, and ECM monitoring circuitry detecting heater operation through current draw or resistance measurements. The ECM applies battery voltage to heater circuit during engine operation (and often pre-heating before start on some systems), monitors heater operation through sensor’s heater terminal resistance or current flow, and triggers fault codes when heater circuit shows open circuit (infinite resistance suggesting broken heater element or wiring), short circuit (near-zero resistance suggesting internal short or ground fault), or excessive resistance (suggesting deteriorating heater element not drawing sufficient current).

Common heater failure modes include heater element breakage from thermal cycling and vibration stress (sensors undergo dramatic temperature changes from ambient to 800°F+ repeatedly creating expansion/contraction stress), wiring harness damage from heat, abrasion, or corrosion affecting connections between sensor and ECM, connector terminal corrosion preventing proper electrical contact creating resistance that ECM interprets as heater malfunction, and less commonly ECM internal failures affecting heater control circuits though this proves relatively rare compared to sensor or wiring problems. The heater elements prove surprisingly robust typically lasting 100,000-150,000+ miles though earlier failures occur from manufacturing defects, contamination (oil consumption, coolant leaks causing sensor fouling), or physical damage from road debris or improper installation.

The failure implications prove nuanced—a completely failed heater circuit prevents sensor from reaching operating temperature meaning the sensor provides no usable output forcing ECM into open-loop fuel control using predetermined fuel maps rather than closed-loop trim based on sensor feedback. This dramatically affects fuel economy (typically 10-20% worse in open-loop), increases emissions substantially (potentially causing emissions test failures), and creates drivability issues including rough idle, hesitation, and reduced power particularly during warm-up when open-loop enrichment proves excessive for actual conditions. However, partial heater degradation where element still functions though at reduced capacity might allow sensor operation with minimal symptoms except illuminated check engine light—making symptom severity unreliable indicator of repair urgency as some severe heater failures cause obvious problems while others prove nearly transparent beyond the warning light.

Understanding P1155’s precise definition and how it relates to similar codes helps diagnose root causes and prevents confusion when multiple codes appear simultaneously.

P1155 Definition: AFR Sensor Heater Circuit Malfunction Bank 2 Sensor 1

The P1155 code specifically indicates that the Engine Control Module detected abnormal operation of the Air-Fuel Ratio sensor heater circuit for the sensor designated as Bank 2 Sensor 1, with “abnormal operation” typically meaning the heater circuit shows resistance values outside expected range (too high suggesting open circuit or degraded element, too low suggesting short circuit), current draw differs from specifications (insufficient current suggesting high resistance, excessive current suggesting short), or heater fails to bring sensor to operating temperature within expected timeframe (ECM monitors sensor signal characteristics that change with temperature, detecting when sensor remains cold despite heater activation).

The “malfunction” determination occurs through ECM’s continuous monitoring comparing actual heater circuit performance against programmed specifications, with fault typically requiring persistent condition rather than momentary deviation—the ECM might detect single instance of out-of-spec reading but won’t trigger check engine light and store code unless abnormal condition persists across multiple drive cycles or exceeds severity threshold indicating genuine malfunction rather than momentary anomaly. This validation prevents nuisance codes from transient electrical glitches though it means the fault likely represents real problem requiring repair rather than random electronic noise that clearing codes will permanently resolve.

For Toyota RAV4 specifically, the P1155 typically (though not universally across all model years) refers to the downstream AFR sensor or potentially the second sensor in systems using multiple upstream sensors, while P1135 refers to primary upstream sensor (Bank 1 Sensor 1) providing main fuel control feedback. However, Toyota’s Bank 1/Bank 2 nomenclature proves somewhat confusing on inline four-cylinder engines where traditional bank designation doesn’t cleanly apply—owners should consult model-specific service information or dealership parts diagrams identifying exact sensor positions rather than assuming Bank 2 means specific physical location that might vary across model years.

The P1135 code represents identical heater circuit malfunction as P1155 but for Bank 1 Sensor 1 (typically the primary upstream sensor on RAV4s), with all diagnostic procedures, repair strategies, and cost implications proving essentially identical between these codes—the only difference involves which physical sensor experiences the problem. When both P1155 and P1135 appear simultaneously, this suggests either systemic problem (wiring harness damage affecting multiple sensors, ECM power supply issue, or less likely multiple coincidental sensor failures) or single problem causing ECM confusion about sensor identification triggering multiple codes when only one sensor actually failed.

The P1130 code indicates AFR sensor circuit malfunction (distinct from heater circuit) for Bank 1 Sensor 1, suggesting the sensor’s signal output rather than heating element shows problems with potential causes including sensor element degradation, exhaust leaks upstream of sensor allowing ambient air intrusion, wiring problems in signal circuit, or ECM issues. The P1130 proves more concerning than heater codes (P1135/P1155) as it suggests sensor cannot provide accurate readings even when properly heated, though heater failures sometimes progress to trigger both heater and signal codes if degraded heating prevents sensor from achieving proper operating conditions necessary for accurate signal generation.

The P0135 code represents OBD-II generic code (P0xxx versus P1xxx manufacturer-specific codes) for heater circuit malfunction Bank 1 Sensor 1—essentially identical to P1135 though using standardized OBD-II nomenclature versus Toyota-specific code. Some scan tools display P0135 while others show P1135 for identical fault, with no functional difference in meaning, diagnosis, or repair though understanding that these represent same problem prevents confusion when different scanners or information sources reference different code numbers for identical condition.

When multiple codes appear (common scenario: P1135, P1155, P1130 appearing together), systematic diagnosis proves essential rather than immediately replacing multiple sensors potentially wasting money on unnecessary parts. The diagnostic strategy involves identifying whether common-cause problems exist (harness damage, ECM issues, power supply faults) versus coincidental multiple failures, with thorough inspection and electrical testing before parts replacement preventing shotgun approach that might solve problem through luck but wastes money on unnecessary components and doesn’t address root causes that might trigger future failures.

Symptoms and Drivability Impact

Understanding how P1155 affects actual vehicle operation helps assess repair urgency and recognize when additional problems might exist beyond just the code.

Check Engine Light and Emissions Test Failures

The most obvious symptom involves illuminated Check Engine Light (CEL, also called Malfunction Indicator Lamp or MIL) displaying constant solid light rather than flashing (flashing indicates severe misfire requiring immediate attention, solid light indicates less critical stored code). The check engine light remains illuminated continuously once code sets and will persist until fault repairs and someone clears codes using scan tool or disconnecting battery—simply ignoring the light won’t make it extinguish spontaneously as the fault remains present even if symptoms prove minimal or absent.

The emissions test implications prove significant in jurisdictions requiring periodic inspections, as essentially all modern emissions testing includes OBD-II readiness checks that automatically fail vehicles with stored codes or incomplete monitor status—meaning P1155 guarantees emissions test failure regardless of actual tailpipe emissions levels. Some areas allow temporary waivers if diagnosis proves expensive repairs uneconomic relative to vehicle value, though requirements vary by jurisdiction with most requiring actual repair and code clearing before passing inspection. The emissions failure creates legal vehicle operation issues in strict jurisdictions where expired inspection stickers prevent registration renewal or create traffic violation liability.

The readiness monitor implications complicate immediate post-repair testing—even after repairing fault and clearing codes, the RAV4’s various emission monitors must complete drive cycles reaching “ready” status before emissions testing accepts the vehicle. This typically requires 50-100 miles of varied driving including specific conditions (highway cruising, city driving, idle periods, cold starts) enabling various monitors to run and complete—meaning repair completion doesn’t immediately enable successful emissions testing but requires additional driving before monitors set ready status. Impatient owners attempting emissions testing immediately after repair often experience rejection for “incomplete monitors” despite successful fault repair and code clearing.

Fuel Economy and Performance Effects

The fuel economy impact varies substantially depending on whether heater failure completely prevents sensor operation (forcing open-loop fuel control) versus partial degradation allowing continued closed-loop operation. Complete heater failure typically causes 10-20% fuel economy degradation as open-loop fuel maps run richer than necessary for emissions compliance and catalyst protection, with the wasted fuel proving noticeable through reduced miles-per-gallon and increased fuel costs that might reach $30-50+ monthly for typical driving creating economic incentive for prompt repair beyond just addressing check engine light.

However, partial heater degradation where sensor eventually reaches operating temperature through exhaust heat alone (though slower than proper heater operation) might create minimal fuel economy impact as closed-loop operation eventually begins after extended warm-up period—creating situations where drivers notice no symptoms except check engine light suggesting the problem proves less urgent though it still affects cold-start emissions and warm-up performance requiring eventual repair for proper operation. The symptom severity proves unreliable indicator of actual fault significance as some severe heater failures cause obvious problems while others remain nearly transparent beyond warning light.

The performance impacts similarly vary with complete sensor failure potentially causing hesitation, stumbling, rough idle, reduced power, and drivability complaints particularly during cold operation before engine reaches full operating temperature, while partial degradation might prove completely asymptomatic in normal driving. The most common owner complaint involves “rough running when cold” that smooths out after several minutes warmup—classic indication that sensor reaches operating temperature through exhaust heat eventually but not through proper heater operation, with the extended cold-operation period creating suboptimal fuel control until sensor provides accurate feedback.

Long-Term Consequences of Ignoring P1155

The most immediate consequence involves emissions compliance, with P1155 preventing legal vehicle operation in jurisdictions requiring emissions testing and creating environmental impact through increased hydrocarbon and carbon monoxide emissions during open-loop operation—though this proves more regulatory concern than direct owner impact absent enforcement through inspection requirements. The emissions increase proves substantial (potentially 2-3x normal levels during cold operation) though modern three-way catalysts handle some excess emissions mitigating worst environmental impacts.

The fuel economy penalty accumulates expensive ongoing costs with typical open-loop operation reducing efficiency 15%—meaning a vehicle normally achieving 27 MPG might drop to 23 MPG, costing approximately $400-600 annually in additional fuel consumption (assuming 12,000 miles annually and $3.50/gallon). This creates economic argument for prompt repair as multi-year fuel costs exceed repair expenses, with three-year delay costing $1,200-1,800 in wasted fuel far exceeding typical $300-400 repair costs making procrastination economically irrational beyond initial repair avoidance.

The catalyst damage risk proves more serious though slower-developing, with extended open-loop operation running rich potentially degrading catalytic converter performance through carbon fouling and thermal stress from excessive fuel burning in catalyst rather than combustion chamber. The catalyst replacement proves expensive ($1,000-2,500+ depending on vehicle and catalyst configuration) far exceeding simple sensor replacement costs, with the interconnected failure scenario—ignored sensor fault causing catalyst damage requiring far more expensive repair—creating compelling argument for addressing sensor problems promptly preventing cascading failures that exponentially increase total repair costs.

The secondary sensor failures might occur through electrical problems in one circuit causing voltage irregularities affecting other sensors, with shared ground connections or wiring harness damage creating conditions where initial single sensor fault progresses to multiple sensor problems through electrical crosstalk or shared failure modes. This proves less common than direct catalyst damage though it occasionally occurs particularly in vehicles with previous accident damage, modified wiring, or corrosion issues creating widespread electrical problems manifesting initially through single sensor code but eventually triggering multiple failures requiring comprehensive diagnosis and repair rather than simple sensor replacement.

Systematic Diagnostic Procedures

Proper diagnosis prevents unnecessary parts replacement and ensures repairs actually address root causes rather than just clearing codes temporarily without resolving underlying problems.

Initial Scan Tool Diagnosis and Freeze Frame Data

The diagnostic process begins with proper scan tool connection using OBD-II port (located driver’s side lower dash on RAV4s) and quality scan tool capable of reading manufacturer-specific codes and live data—basic code readers providing only generic OBD-II codes prove insufficient for comprehensive diagnosis requiring tools accessing Toyota-specific data including freeze frame information, live sensor readings, and pending codes providing context beyond just stored fault codes. Professional-grade tools (Snap-on, Autel, Launch) prove ideal though consumer-grade options (BlueDriver, OBDeleven, Torque Pro with quality Bluetooth adapter) provide adequate capability for DIY diagnosis at $50-200 versus $3,000-5,000 professional equipment investments.

The freeze frame data captured at moment of code setting provides valuable diagnostic information including engine temperature, speed, load, and other parameters existing when fault occurred—revealing whether problem appears during specific conditions (cold start, highway cruising, idle) versus occurring randomly across all operation. For P1155, relevant freeze frame data includes engine coolant temperature (very low temps suggest cold-start problem, normal temps indicate fault occurring during normal operation), vehicle speed (zero suggests idle problem, highway speeds indicate cruising fault), and calculated load (high load suggests the fault relates to specific demanding conditions versus general operation).

The live data examination while engine operates enables observation of AFR sensor readings, heater circuit current draw (if scan tool provides this data—many don’t), short-term and long-term fuel trims (deviations from zero suggest closed-loop compensation for rich/lean conditions), and other parameters revealing whether sensor provides any output (suggesting partial operation) versus no signal (suggesting complete failure). The sensor voltage or lambda reading typically shows 0.5V or lambda 1.0 during properly controlled stoichiometric operation, with readings frozen at maximum or minimum values suggesting sensor not responding properly though this indicates signal circuit problems rather than heater issues that P1155 specifically targets.

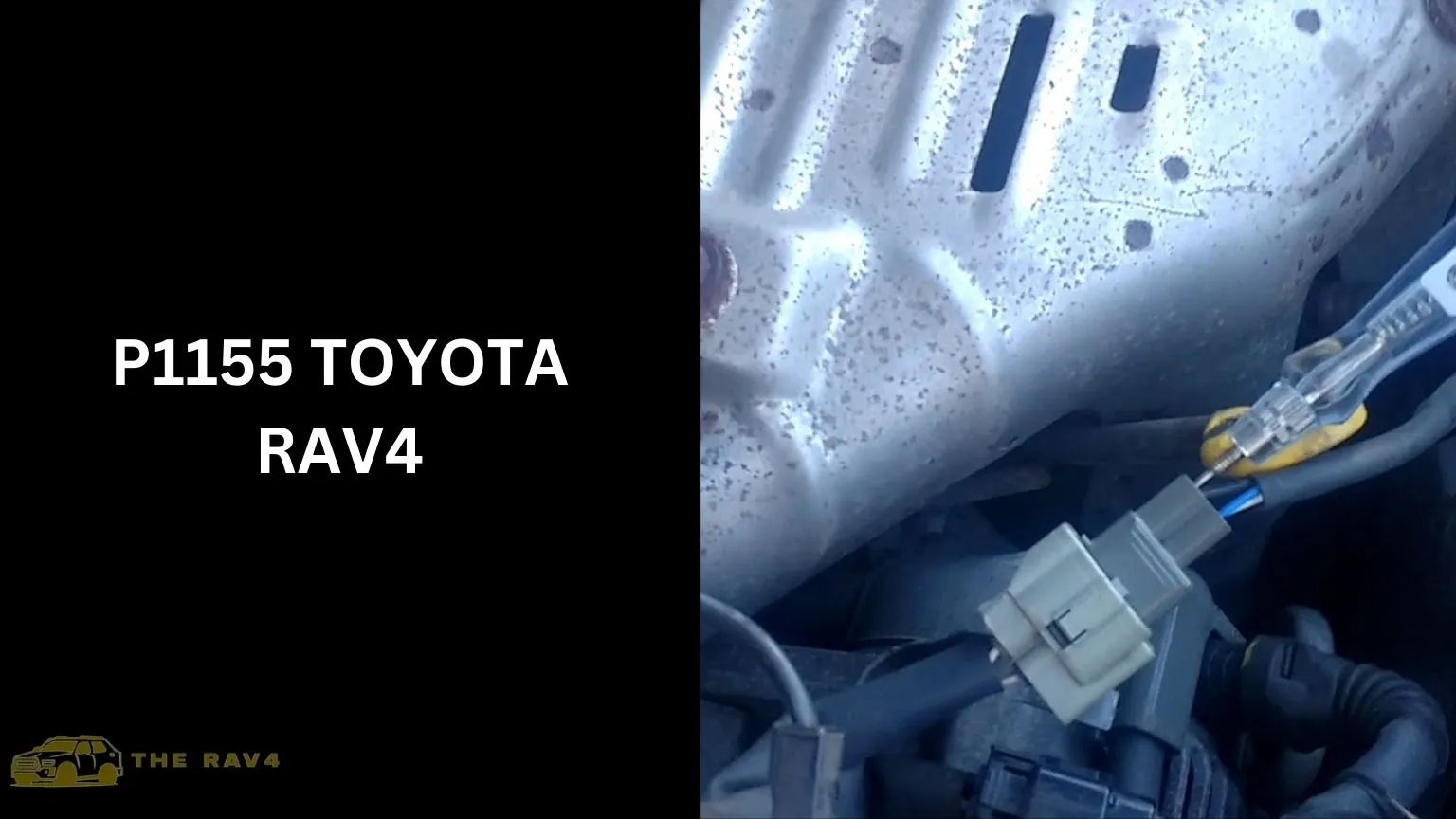

Visual Inspection and Wiring Harness Examination

The physical inspection begins with locating the sensor identified by code (Bank 2 Sensor 1—which specific sensor varies by model year requiring service manual or parts diagram verification), with access typically requiring vehicle raising on jack/stands or ramps for underneath observation. The sensor appears as spark-plug-sized component threaded into exhaust manifold or pipe with wiring harness connecting to sensor via connector approximately 6-12 inches from sensor body providing thermal protection preventing connector damage from exhaust heat.

The connector inspection proves critical as terminal corrosion represents common failure mode mimicking sensor problems—the connector should cleanly separate (may require pressing release tab), terminals should show clean silver or gold color without green corrosion or black oxidation, and no signs of water intrusion, melted plastic (indicating overheating), or bent/damaged pins interfering with proper connection. Cleaning corroded terminals using electrical contact cleaner and fine sandpaper often resolves intermittent heater codes without sensor replacement, with the corrosion creating resistance triggering ECM fault detection though sensor itself remains functional.

The wiring harness examination involves inspecting visible harness runs for damage including insulation cracks, exposed copper wire, melted insulation from exhaust heat, chafe marks from rubbing against chassis components, and rodent damage (surprisingly common with animals chewing through insulation accessing copper wire). Pay particular attention to areas where harness passes near exhaust components or sharp chassis edges creating abrasion risk, and where harness routing might create stress from engine movement potentially fatiguing wires through flexing. Any visible damage requires repair (professional or DIY wiring repair using proper techniques) before concluding sensor itself needs replacement.

The exhaust system inspection should identify leaks upstream of sensor allowing ambient air intrusion that affects sensor readings, physical damage to sensor from road debris or impact, and excessive carbon buildup suggesting rich operation or oil consumption contaminating sensor. Exhaust leaks prove common after manifold gasket replacement or when exhaust studs corrode/break, with the air intrusion creating lean readings confusing ECM and potentially triggering both heater and signal codes requiring leak repair before sensor replacement addresses actual fault versus symptom of underlying exhaust problem.

Electrical Testing: Resistance and Voltage Measurements

The heater circuit resistance testing provides definitive diagnosis of heater element condition, requiring digital multimeter with resistance (ohms) measurement capability and sensor connector disconnected preventing ECM from interfering with measurements. The heater circuit typically uses two of sensor’s four wires (AFR sensors generally have four terminals: heater positive, heater negative, signal positive, signal negative), with Toyota service specifications indicating acceptable heater resistance typically ranges 11-16 ohms when measured at room temperature though exact specifications vary by sensor model requiring service manual consultation for specific vehicle/sensor combination.

The testing procedure involves identifying which connector terminals correspond to heater circuit (service manual or wiring diagram required—guessing risks incorrect measurements), setting multimeter to resistance measurement (200 ohm scale typically appropriate), connecting multimeter leads to appropriate terminals, and observing reading compared to specifications. Infinite resistance (OL or overload on many meters) indicates open heater circuit from broken element or wiring, near-zero resistance (under 1 ohm) suggests short circuit to ground or between heater circuits, and resistance significantly higher than specification (e.g., 50+ ohms when specification shows 12-16 ohms) indicates degraded element requiring replacement though it might still partially function explaining why some symptoms prove minimal despite stored code.

The voltage testing at sensor connector with harness connected and engine running verifies ECM provides proper power and ground to heater circuit, with testing requiring back-probing connector terminals (inserting meter probes alongside wire terminals without disconnecting) or using breakout box if available. The heater positive terminal should show battery voltage (approximately 12-14.5V depending on charging system) when measured relative to ground, while heater ground terminal should show near-zero voltage (under 0.5V) indicating proper ground connection. Absence of voltage suggests wiring problem or ECM fault rather than sensor problem, while proper voltage with improper sensor resistance confirms sensor requires replacement rather than wiring repair.

The sensor signal testing (though not directly related to heater circuit) provides additional diagnostic value, with properly functioning AFR sensor showing varying voltage (typically 0.5V at stoichiometric, varying from 0V to 1V as mixture changes) or lambda readings (1.0 at stoichiometric, varying from approximately 0.7-1.3 depending on mixture). Frozen sensor readings (not responding to throttle changes, mixture variations) suggest sensor element failure beyond just heater circuit, while properly varying readings indicate sensor element functions and heater circuit represents isolated fault that sensor replacement will fully resolve.

Repair Procedures and Parts Replacement

Moving from diagnosis to actual repair requires understanding proper procedures, parts selection, and techniques ensuring reliable long-term fixes rather than temporary solutions.

OEM vs Aftermarket Sensor Selection

Original Equipment Manufacturer (OEM) sensors from Toyota represent safest most reliable parts choice, providing guaranteed compatibility, proper specifications, and quality matching original equipment though at premium pricing (typically $150-250 per sensor from dealers). The OEM sensors undergo extensive vehicle-specific testing ensuring proper operation across full temperature and operating condition ranges, with design incorporating lessons from previous sensor generations and field failures creating continuous improvement that aftermarket alternatives might not reflect. For RAV4 owners prioritizing reliability and long-term durability, OEM proves worth premium pricing particularly for primary upstream sensors critically affecting fuel control and emissions.

Aftermarket sensors from quality manufacturers including Denso (OEM supplier for many Toyota sensors), NTK/NGK, Bosch, and Walker Products provide alternatives typically priced $80-150 offering substantial savings versus OEM while maintaining acceptable quality through ISO certification and testing. These manufacturers produce millions of sensors annually with extensive quality control and application engineering creating products functionally equivalent to OEM for most purposes, with the primary risk involving occasional fitment issues (connector not quite matching, thread length variations) or early failures from manufacturing defects occurring at slightly higher rates than OEM though still maintaining acceptably low failure rates for cost-conscious buyers.

Budget aftermarket sensors from unknown manufacturers or ultra-cheap online offerings ($30-60) prove tempting for maximum cost savings though they carry substantially higher failure risk through inadequate quality control, improper specifications, and short service life potentially requiring replacement within 12-24 months versus 100,000+ miles from quality sensors. These budget sensors occasionally work perfectly providing excellent value, though they fail early often enough (perhaps 20-30% experience problems within two years) that the “savings” prove illusory when considering re-replacement costs including additional labor charges if professional installation used initially. The budget sensors might prove acceptable for older high-mileage vehicles where long-term durability proves less critical though they’re poor choices for newer vehicles where multi-year reliable operation proves important.

The parts selection recommendation for most RAV4 owners involves quality aftermarket sensors (Denso, NTK, Bosch) providing optimal balance of cost and reliability, with OEM reserved for situations where absolute maximum reliability justifies premium pricing (very new vehicles under warranty, particularly critical sensors, previous aftermarket failures creating skepticism). The budget sensors should generally be avoided unless vehicle value proves so low that proper repair proves economically questionable anyway—suggesting that comprehensive repair might not make financial sense compared to accepting check engine light or replacing vehicle entirely rather than investing in proper parts.

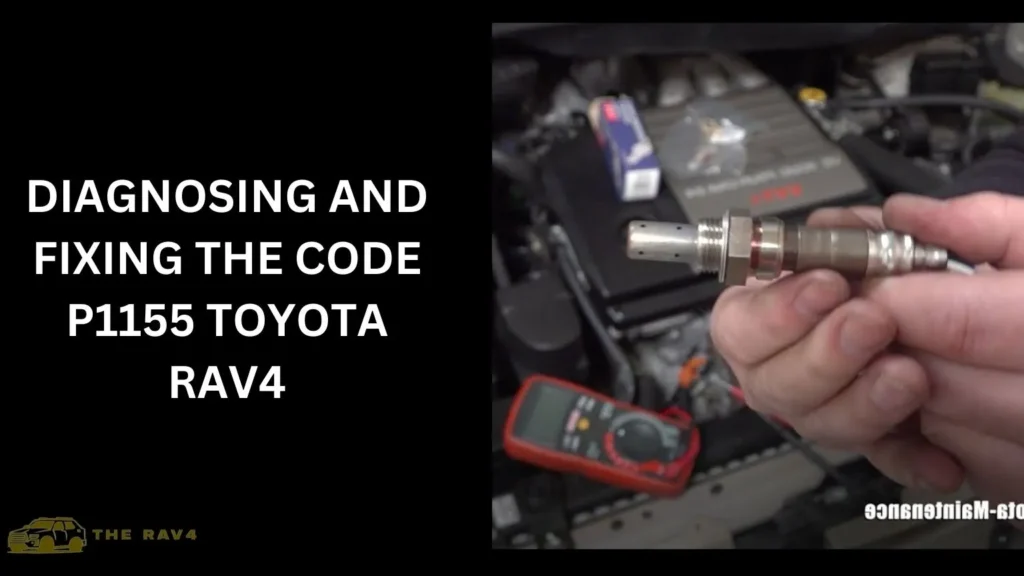

DIY Replacement Procedure for Competent Home Mechanics

The DIY sensor replacement proves feasible for mechanically-inclined owners with basic tools (socket set, jack/stands, possibly oxygen sensor socket with cutout for wiring harness) and moderate mechanical aptitude, offering $150-250 labor savings versus professional service though requiring time investment (typically 1-2 hours for first-time DIY replacement, faster with experience) and some physical capability working underneath vehicle in potentially awkward positions accessing sensors in cramped exhaust component areas.

The procedure involves safely raising and supporting vehicle on jack stands (never work under vehicle supported only by jack—catastrophic failure risk creates deadly crushing hazard), locating sensor requiring replacement (Bank 2 Sensor 1—verify exact location using service manual or parts diagram), disconnecting wiring harness connector (may require pressing release tab, sometimes requires working blind by feel reaching behind components obstructing direct view), and removing sensor using proper tools. The sensor removal proves potentially challenging as exhaust heat cycling and corrosion often seize sensor threads in manifold or pipe, requiring substantial force potentially breaking sensor during removal—specialized oxygen sensor sockets with split sides accommodating wiring harness provide mechanical advantage, while penetrating oil applied hours before removal attempt (PB Blaster, Liquid Wrench) helps free corroded threads.

If sensor proves seized, avoid excessive force risking manifold or pipe thread damage (expensive repair), instead trying heat application using propane torch carefully heating area around sensor threads (NOT sensor itself—heating sensor damages ceramic element) for 2-3 minutes then immediately attempting removal while metal expands, repeating penetrating oil application and waiting overnight if initial attempts fail, and as last resort drilling out frozen sensor and chasing threads using tap to repair damaged manifold threads though this advanced repair exceeds typical DIY capabilities requiring professional assistance. Many mechanics report success using combined heat and penetrating oil after initial removal attempts fail, with patience proving more valuable than brute force that damages expensive exhaust components.

The installation involves inspecting new sensor ensuring anti-seize compound coating on threads (most quality sensors come pre-coated—if not, apply small amount of nickel anti-seize avoiding getting compound on sensor element which would contaminate it), hand-starting sensor threads ensuring proper engagement without cross-threading (forcing misaligned sensor strips threads creating expensive repair), tightening sensor to proper torque specification (typically 30-35 lb-ft though consult specifications—under-tightening creates exhaust leaks, over-tightening risks thread damage), reconnecting wiring harness ensuring positive click indicating proper connection, and checking connector routing preventing contact with hot exhaust components that would melt insulation creating new problems after repair.

The post-installation procedure requires clearing stored codes using scan tool (or battery disconnection though this resets all vehicle systems requiring radio reprogramming, window relearn procedures, potentially other resets depending on specific vehicle), driving vehicle enabling ECM to verify proper sensor operation (typically requires 20-30 minutes varied driving), and rescanning for codes verifying P1155 doesn’t return confirming successful repair. If code returns immediately, double-check connections and wiring—if code returns after days/weeks, new sensor might be defective (uncommon but possible) requiring warranty replacement or previous diagnosis might have missed additional problems (harness damage, ECM issues) requiring further investigation.

Professional Service Considerations

Professional sensor replacement at independent shops or dealerships typically costs $250-450 total ($80-250 parts depending on OEM vs aftermarket, $150-250 labor at typical $100-150/hour shop rates) with dealerships generally charging upper range and independent shops offering more competitive pricing though potentially using aftermarket parts unless OEM specifically requested. The professional service advantages include proper diagnostic verification before parts purchase (preventing unnecessary sensor replacement if wiring proves actual fault), warranty coverage on parts and labor (typically 12 months/12,000 miles minimum), access to specialized tools making seized sensor removal safer faster, and professional expertise handling complications (stripped threads, broken sensors, unexpected wiring damage).

The service timing recommendations vary with some owners preferring immediate professional service upon code detection for peace of mind and warranty-covered repair assurance, while others defer service if symptoms prove minimal and emissions testing not immediately required saving professional service costs. The optimal timing balances repair costs against fuel economy penalties and potential cascading damage, with general recommendation suggesting repair within 1-2 months of code appearance preventing extended open-loop operation that wastes fuel and risks catalyst damage—though immediate service proves unnecessary absent severe symptoms or upcoming emissions testing.

The warranty considerations prove important with most professional shops providing 12-24 month warranty on repairs, though warranty terms vary regarding coverage scope (parts only, labor only, or both), mileage limitations, and exclusions for related component failures. The warranty value offsets higher professional service costs particularly for vehicles with uncertain diagnosis where professional expertise reduces risk of misdiagnosis causing unnecessary parts replacement—the DIY approach saves money when diagnosis proves straightforward though professional service provides valuable insurance against complications for situations where diagnosis uncertainty exists or mechanical confidence proves limited.

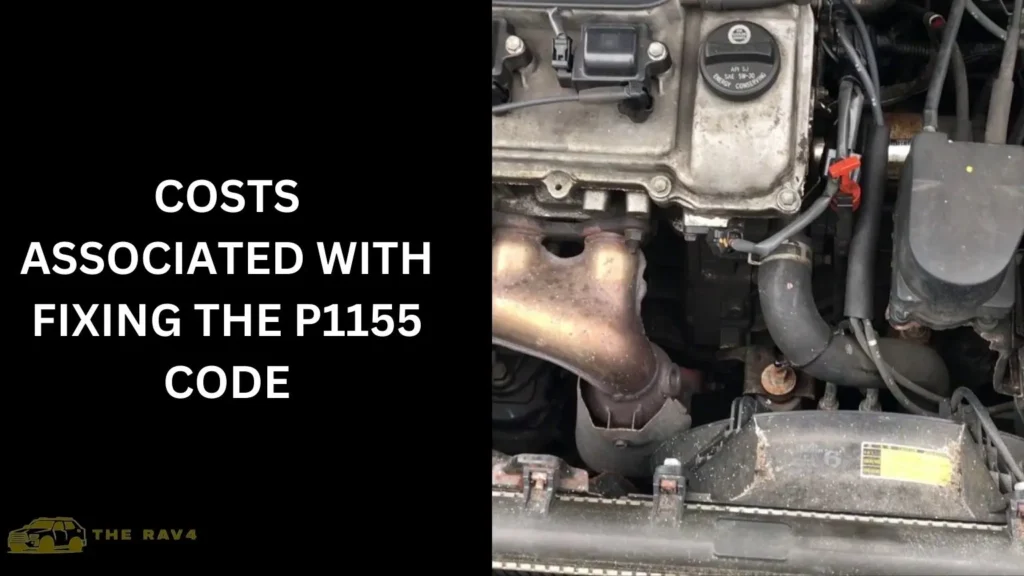

Cost Analysis: Budgeting for P1155 Repair

Understanding realistic repair costs enables proper budgeting and prevents surprise bills when seeking professional service or planning DIY repairs.

Parts Cost Breakdown by Sensor Type and Source

OEM Toyota AFR sensors typically retail $150-250 from dealership parts departments, with pricing varying based on specific sensor model (upstream sensors sometimes cost more than downstream given their more critical function), model year (newer vehicles sometimes using updated sensor designs at different price points), and dealer markup policies (some dealers maintain aggressive pricing while others charge premium for parts). Online OEM sources (dealers with online parts sales) sometimes offer 10-20% discounts versus walk-in counter pricing, with savings potentially worthwhile for cost-conscious buyers though requiring more planning versus immediate local parts counter availability.

Quality aftermarket sensors from Denso, NTK/NGK, Bosch, Walker Products typically price $80-150 from auto parts retailers (AutoZone, O’Reilly, Advance Auto Parts), online retailers (RockAuto, Amazon, eBay), or wholesale distributors (requires business account typically though some allow consumer purchases). The pricing variations prove substantial even within single manufacturer based on purchase channel—RockAuto often offers lowest pricing ($80-100) with slower shipping, while local auto parts stores charge premium ($120-150) but provide immediate availability enabling same-day repair, creating trade-offs between cost optimization and convenience depending on repair urgency and budget priorities.

Budget aftermarket sensors price $30-60 from online marketplaces (Amazon, eBay, AliExpress), though quality proves highly variable with some units providing acceptable service while others fail prematurely or never function properly requiring return/replacement consuming time and potentially leaving vehicle inoperable longer than proper parts would have created. The budget sensors prove tempting for maximum cost reduction though the failure risk and potential re-repair costs often negate initial savings making them questionable value except for unusual situations (very old vehicle not worth proper repair, temporary fix pending vehicle replacement, experienced DIYer comfortable with trial-and-error approach accepting potential multiple replacement attempts).

The additional parts and consumables add modest costs including anti-seize compound ($5-10 tube lasting multiple jobs), penetrating oil ($6-8 can), possibly new sensor gasket if used by specific model (typically $2-5), and optionally new wiring harness connector if corrosion requires replacement ($15-35 depending on availability). These consumables prove one-time purchases lasting multiple repairs, with total additional cost typically $10-20 when purchased initially building basic automotive repair consumables inventory.

Labor Costs for Professional Installation

Independent repair shop labor typically runs $100-150 per hour depending on region and shop reputation, with sensor replacement generally requiring 1.0-1.5 hours book time (industry-standard repair time estimates used for quoting) creating $100-225 labor charges for routine replacement. However, complications including seized sensors, difficult access, or required additional diagnostic work might increase labor time to 2-3 hours creating $200-450 labor charges though reputable shops should provide estimates before beginning work rather than surprising customers with unexpectedly high bills. The book time standards sometimes prove overly optimistic requiring actual mechanics longer periods particularly for corroded high-mileage vehicles where sensors resist removal, though experienced technicians occasionally complete jobs faster than book time enabling shop profits while providing fair pricing to customers.

Dealership service departments typically charge $120-180 per hour for labor (higher in expensive markets, lower in rural areas), with similar 1.0-1.5 hour book time creating $120-270 labor charges for routine replacement. The dealership advantages include factory-trained technicians familiar with Toyota-specific issues, access to manufacturer service bulletins describing known problems and recommended fixes, and warranty coverage through manufacturer’s repair guarantee programs—benefits potentially worth premium pricing though independent shops using quality parts and experienced technicians generally provide equivalent repair quality at lower cost making dealerships less attractive for routine repairs like sensor replacement versus complex warranty-covered repairs where manufacturer backing proves valuable.

Mobile mechanics represent increasingly popular alternative offering on-site service at home or workplace, typically charging $75-125 per hour for labor with sensor replacement feasibility depending on vehicle access and required tools. The mobile service advantages include convenience eliminating need to transport vehicle to shop and time savings avoiding drop-off/pickup trips, though limitations include potentially limited diagnostic capabilities (mobile mechanics carry fewer specialized tools than fully-equipped shops) and challenges working in driveways or parking lots versus professional service bays with lifts and proper lighting. The mobile option proves excellent for routine repairs including sensor replacement when diagnosis confirms parts requirements, though complex diagnostic situations often require shop resources that mobile service cannot provide.

Total Cost Examples and Comparison

Scenario 1: Budget DIY Repair using quality aftermarket sensor ($100), existing tools, DIY installation (2 hours work), creates total cost approximately $110-130 including consumables—lowest possible cost though requiring time investment and mechanical capability accepting potential complications (seized sensors, diagnostic uncertainty). This proves optimal for mechanically confident owners with adequate tools and time accepting trade-offs for maximum cost savings.

Scenario 2: Premium DIY Repair using OEM sensor ($200), possibly purchasing specialized oxygen sensor socket ($15-25), DIY installation (2 hours work), creates total cost approximately $230-260—moderate cost providing OEM quality without professional labor expense, suitable for quality-focused owners comfortable with DIY mechanical work who prioritize long-term reliability over maximum cost savings.

Scenario 3: Independent Shop Repair using quality aftermarket sensor ($120), professional diagnosis and installation (1.5 hours at $120/hour), creates total cost approximately $300-350—mid-range option providing professional quality and warranty coverage without dealership premium pricing, proving popular choice for owners wanting professional service without excessive cost.

Scenario 4: Dealership Repair using OEM sensor ($220), professional diagnosis and installation (1.5 hours at $150/hour), creates total cost approximately $450-500—highest cost providing maximum assurance through OEM parts, factory-trained technicians, and manufacturer warranty backing, suitable for newer vehicles under warranty or owners prioritizing maximum reliability accepting premium pricing.

The value comparison suggests independent shop repair using quality aftermarket parts provides optimal balance for most RAV4 owners, delivering professional quality at reasonable pricing while avoiding both budget-DIY risks (potential complications, diagnostic errors) and dealership premiums (unnecessary for routine repairs like sensor replacement where independent shops prove fully capable). The DIY approach proves attractive for capable owners though time investment and potential complications make professional service worth consideration, while dealership service rarely justifies premium pricing for straightforward repairs like sensors though it remains preferable for complex diagnostic situations or warranty-covered vehicles.

Model-Specific Considerations Across RAV4 Generations

Understanding how sensor configurations and replacement procedures vary across RAV4 generations helps owners identify specific requirements for their particular model year.

Third Generation (2006-2012): XA30 Platform

The third-generation RAV4 typically uses two AFR sensors (upstream and downstream), with P1155 Bank 2 Sensor 1 generally referring to primary upstream sensor providing main fuel control feedback. These vehicles often experience sensor failures around 80,000-120,000 miles as original equipment sensors reach end of designed service life, with replacement proving straightforward given relatively simple engine bay layout and easy sensor access compared to some compact vehicles with cramped exhaust routing. The 2006-2012 models generally prove reliable regarding sensor issues with failures primarily age/mileage-related rather than design defects.

The sensor part numbers vary between 4-cylinder base models (2.5L) and available V6 models (3.5L), with V6 configuration using additional sensors given dual exhaust banks requiring bank-specific monitoring. Owners must verify exact sensor required using VIN-specific parts lookup rather than assuming all third-generation RAV4s use identical sensors—the part number verification prevents purchasing incorrect sensors requiring return/exchange creating repair delays and frustration.

Fourth Generation (2013-2018): XA40 Platform

The fourth-generation RAV4 maintains similar two-sensor configuration with some variations depending on specific trim and emissions regulations for different markets. These vehicles received updated engine management systems compared to previous generation, with revised sensor designs providing improved durability and response though still experiencing eventual failures around 100,000-150,000 miles from thermal cycling and contamination. The 2013-2018 models occasionally show premature sensor failures around 60,000-80,000 miles from manufacturing defects, with some reports suggesting certain production batches experienced higher failure rates though Toyota issued no formal recalls suggesting isolated rather than widespread problems.

The hybrid RAV4 (available 2016+) uses identical sensor types and locations despite different powertrain configuration, with sensor replacement procedures proving equivalent between conventional and hybrid models though hybrid work requires additional safety precautions around high-voltage systems. Hybrid owners should consult service manuals regarding proper high-voltage system shutdown procedures before beginning sensor replacement, though exhaust sensors generally prove safely accessible without high-voltage exposure risks if proper precautions followed.

Fifth Generation (2019-Present): XA50 Platform

The current fifth-generation RAV4 uses Toyota Safety Sense 2.0 or 2.5+ (depending on model year) with comprehensive emissions monitoring including AFR sensors, with sensor configuration and locations proving similar to previous generation though some detail differences exist in wiring harness routing and connector designs. The newer models show fewer sensor failures given lower average mileage (most remain under 60,000 miles as of 2024), though some premature failures occur from manufacturing defects or contamination requiring warranty or early replacement.

The Adventure and TRD Off-Road trims use identical sensor configurations as other RAV4 variants despite their off-road-focused positioning, with no special sensor types or locations related to their enhanced capabilities. However, these trims’ typical usage patterns (more frequent off-road driving, dusty conditions, potentially more aggressive driving) might accelerate sensor contamination or damage requiring earlier replacement than predominantly on-road driven RAV4s—though this proves vehicle-usage-dependent rather than inevitable outcome of trim choice.

Preventive Maintenance and Long-Term Sensor Care

While sensor failures prove inevitable given finite component lifespan, proper maintenance and careful operation extend sensor life reducing failure frequency and repair costs.

Fuel Quality and Its Impact on Sensor Life

Using quality Top Tier gasoline from recognized brand stations (Chevron, Shell, Exxon, BP, Costco, numerous others carrying Top Tier certification) significantly impacts sensor longevity through enhanced detergent packages reducing combustion chamber deposits and exhaust contamination that degrade sensors over time. The Top Tier designation represents voluntary enhanced standard exceeding EPA minimum detergent requirements, with certified fuels containing 2-3x more detergents than minimum-requirement fuels helping maintain fuel injector cleanliness and reduce carbon formation that contributes to sensor fouling.

Avoiding ultra-cheap no-name gasoline from questionable stations prevents contamination from poor fuel quality containing excessive sulfur or other contaminants accelerating sensor degradation, with the few cents per gallon savings from discount stations often costing far more through premature sensor failures and reduced engine efficiency. While modern ultra-low-sulfur gasoline proves much better than historical formulations that destroyed sensors within 30,000-50,000 miles, quality variations still exist between premium brands maintaining stringent quality control and budget operations with minimal oversight accepting minimum-specification fuel that technically meets requirements while providing no margin for maintaining engine cleanliness.

The fuel system cleaning using quality additives (Techron, Sea Foam, BG 44K) according to manufacturer directions every 5,000-10,000 miles helps maintain fuel injector cleanliness preventing rich operation from clogged injectors causing excessive carbon formation contaminating sensors, though modern Top Tier gasolines contain sufficient detergents making additional cleaners generally unnecessary for normal driving. The cleaners prove valuable for addressing existing problems (rough idle from injector deposits) or vehicles using questionable fuel sources, though they cannot reverse sensor damage from contamination requiring sensor replacement once degradation occurs.

Addressing Oil Consumption and Coolant Leaks

Engine oil consumption (common issue on some RAV4 engines particularly early 2006-2012 2.5L models with piston ring problems) creates exhaust contamination from oil burning in combustion chamber, with oil residue coating sensors degrading their response and longevity. Addressing underlying oil consumption (piston ring replacement, PCV system service, valve seal replacement depending on root cause) proves essential for maintaining sensor life, with ignoring consumption creating recurring sensor failures requiring repeated replacement every 30,000-50,000 miles rather than 100,000+ miles that proper engine maintenance provides.

Coolant leaks into combustion (from head gasket failure, intake manifold gasket leaks on V6 models) prove particularly destructive to sensors as coolant contains silicates and other additives that coat sensor elements destroying their functionality within days or weeks of exposure. The characteristic sweet smell from exhaust, white smoke, rapid coolant loss, and overheating suggest coolant contamination requiring immediate repair preventing not just sensor damage but catastrophic engine damage from overheating. Never attempt to extend failing head gasket or intake gasket service through temporary sealers or additives—proper gasket replacement prevents sensor contamination and engine damage that sealers cannot reliably prevent.

Proper Maintenance Schedules and Inspection

Following Toyota’s recommended maintenance schedule including oil changes (every 5,000-10,000 miles depending on oil type and driving conditions), air filter replacement (every 15,000-30,000 miles or annually), spark plug replacement (every 30,000-60,000 miles depending on plug type), and comprehensive inspections helps maintain engine health preventing conditions that accelerate sensor degradation. The preventive maintenance proves far more cost-effective than addressing failures after they occur, with $300-500 annual maintenance preventing $1,000-3,000 major repairs that deferred maintenance eventually requires.

The exhaust system inspection during oil changes or annual service should identify developing leaks before they affect sensor operation, with mechanics noting exhaust manifold gasket seepage, corroding pipes, or loose connections requiring repair before problems worsen. The early leak detection prevents sensor contamination from air intrusion creating false readings and prevents loud exhaust noise creating daily driving annoyance, with simple gasket replacement or clamp tightening costing far less than complete pipe replacement that extensive corrosion eventually requires.

Conclusion: Managing P1155 for Optimal RAV4 Performance

The Toyota RAV4 P1155 code represents common though manageable issue indicating AFR sensor heater circuit malfunction requiring diagnosis confirming root cause (failed sensor element, wiring damage, connector corrosion) followed by appropriate repair (sensor replacement, wiring repair, connector cleaning) restoring proper engine management system operation enabling optimal fuel economy, emissions compliance, and driveability. The repair proves straightforward for capable DIY mechanics offering $150-250 savings versus professional service, though professional diagnosis and repair provides warranty coverage and expertise handling complications justifying moderate cost premiums for owners preferring professional assistance over DIY challenges.

For RAV4 owners encountering P1155, the recommended approach involves prompt diagnosis within days of code appearance preventing extended open-loop operation wasting fuel and risking catalyst damage, systematic troubleshooting identifying actual fault rather than assuming sensor requires replacement without verification, appropriate parts selection balancing cost and quality (quality aftermarket proving optimal for most applications), and proper repair procedures ensuring reliable fix rather than temporary solution requiring repeated service. The investment in proper diagnosis and quality repair proves cost-effective compared to ignoring problems allowing progressive damage or attempting budget repairs failing prematurely requiring re-service.

The broader lesson extends beyond P1155 specifically to general automotive maintenance philosophy—modern vehicles prove remarkably reliable when properly maintained using quality parts and correct procedures, though they inevitably require periodic repairs as components reach designed service life limits or fail from contamination and wear. Accepting that routine sensor replacement proves normal rather than indicating vehicle quality problems helps owners maintain realistic expectations, with proactive professional maintenance and prompt repair addressing issues before they cascade into expensive failures proving far more economical than reactive service delaying repairs until multiple systems fail requiring comprehensive expensive repairs that early intervention would have prevented.
