Why Does My RAV4 Say “Traction Battery Needs to Be Protected”? Complete Diagnostic and Solution Guide
For Toyota RAV4 Hybrid and RAV4 Prime owners, few dashboard warnings generate more immediate concern than the cryptic message “Traction Battery Needs to Be Protected” appearing on the multi-information display. Unlike straightforward alerts like “Low Fuel” or “Check Engine Light,” this traction battery warning doesn’t intuitively communicate what’s wrong, whether continued driving is safe, what caused the problem, or how urgently you need to seek service. The ambiguity creates anxiety amplified by owners’ awareness that hybrid battery systems represent expensive, complex components whose failure could mean repair bills of $3,000-$8,000 or more, potentially making even relatively new vehicles economically impractical to repair.
The traction battery warning’s appearance often triggers cascading questions: Does this mean my expensive hybrid battery is failing prematurely despite the vehicle having relatively low mileage? Can I continue driving to my destination or should I pull over immediately and call a tow truck? Will this repair be covered under Toyota’s hybrid battery warranty or will I face out-of-pocket costs? Did I do something wrong in how I’ve operated or maintained the vehicle that caused this problem? And most fundamentally—what does “needs to be protected” actually mean in practical terms that a non-engineer can understand?
The confusion stems partly from Toyota’s conservative warning system design philosophy, where the vehicle displays protective warnings when battery management systems detect conditions that could potentially harm the battery if left unaddressed, rather than waiting until actual damage occurs. This precautionary approach means the “Traction Battery Needs to Be Protected” warning often appears in situations where the battery itself remains perfectly healthy but external conditions—extreme temperatures, unusual driving patterns, electrical system issues, or cooling system problems—have created environments that the battery management system deems suboptimal for safe battery operation. The warning functions like a protective parent pulling a child away from potential danger rather than a doctor diagnosing actual injury.
Understanding this warning requires examining what the RAV4’s traction battery actually is and how it differs from conventional car batteries, the sophisticated battery management systems continuously monitoring battery health and environmental conditions, the specific conditions and fault codes that trigger the protection warning, the immediate steps owners should take when this warning appears, the diagnostic procedures technicians use to identify root causes, common problems causing this warning and their typical solutions, and preventive measures that reduce the likelihood of experiencing this issue. Only with this comprehensive understanding can RAV4 Hybrid and Prime owners respond appropriately when the warning appears, make informed decisions about repair urgency and options, and implement practices that maximize hybrid battery longevity.
This complete guide demystifies the “Traction Battery Needs to Be Protected” warning, providing RAV4 Hybrid and Prime owners with the technical knowledge, diagnostic frameworks, and practical guidance needed to understand, address, and prevent this concerning but often manageable issue.
Understanding the RAV4 Traction Battery: What It Is and How It Works
Before examining warning messages, understanding what the traction battery is, how it functions within the hybrid system, and why it requires protection provides essential foundation for interpreting alerts and making informed decisions.
The Traction Battery Versus the 12-Volt Auxiliary Battery
RAV4 Hybrids contain two distinct battery systems that serve completely different functions and should never be confused when discussing battery warnings. The 12-volt auxiliary battery resembles conventional automotive batteries, providing power for accessories, lighting, computers, and starting the hybrid system. This small battery (typically 45-60 amp-hours) operates at 12 volts and costs $150-$300 to replace when it fails after 3-5 years of service.
The traction battery—also called the high-voltage battery or HV battery—represents an entirely different system designed specifically to power the electric motors driving the vehicle and store energy recovered during regenerative braking. In the RAV4 Hybrid, this battery pack contains 168 nickel-metal hydride (NiMH) cells arranged in 28 modules of 6 cells each, producing nominal voltage of 201.6 volts. In the RAV4 Prime plug-in hybrid, the battery uses lithium-ion technology with 96 cells producing 355 volts nominal voltage, providing substantially more energy storage (18.1 kWh versus 1.6 kWh in the regular Hybrid) enabling 42 miles of pure electric driving range.

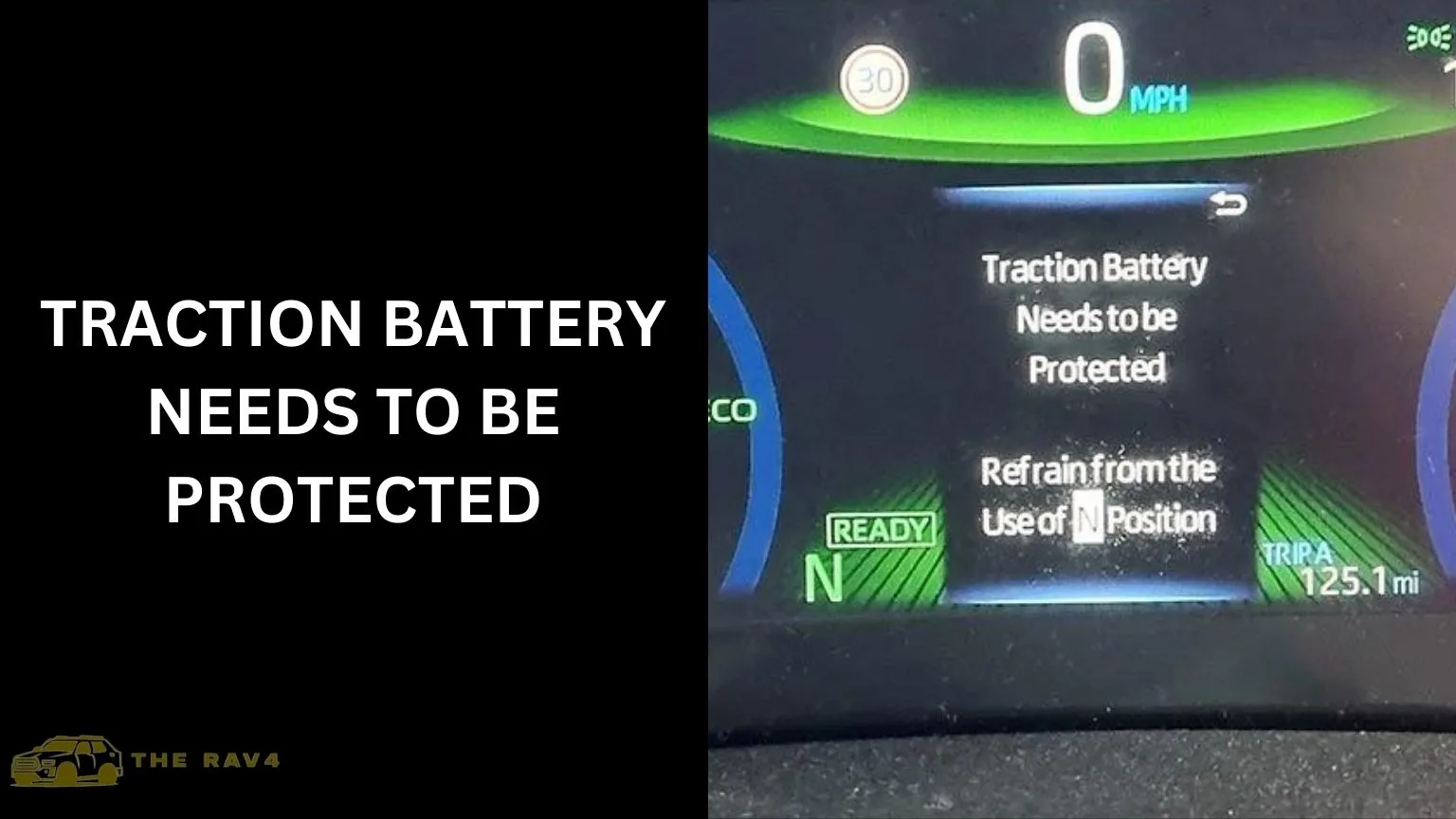

When the warning says “Traction Battery Needs to Be Protected,” it always refers to the high-voltage traction battery, not the 12-volt auxiliary battery. This distinction matters enormously because traction battery issues involve complex diagnostics, specialized high-voltage training for technicians, and potentially expensive repairs, while 12-volt battery problems are straightforward and inexpensive to address. Confusing which battery system the warning references leads to inappropriate responses and potentially dangerous situations if owners attempt DIY interventions on high-voltage systems without proper training.
The traction battery’s physical location differs between RAV4 Hybrid and Prime models. In the RAV4 Hybrid, the battery pack sits under the rear passenger seats and extends partly under the cargo floor, positioned centrally to minimize impact on cargo space while maintaining optimal weight distribution. The RAV4 Prime’s substantially larger battery pack occupies more space under the entire rear seat and cargo floor, reducing cargo volume but providing the energy storage necessary for extended electric-only driving. Both installations include sophisticated thermal management, high-voltage safety disconnects, and structural reinforcement protecting the battery in collisions.
How the Hybrid System Uses the Traction Battery
The RAV4 Hybrid’s powertrain combines a 2.5-liter four-cylinder gasoline engine producing 176 horsepower with electric motors (120 hp front, 54 hp rear in AWD models) that work together delivering combined system output of 219 horsepower. The traction battery serves as the energy reservoir enabling this electric motor operation, storing electricity generated during deceleration and braking through regenerative processes, then releasing this stored energy to power the electric motors during acceleration and cruising.
The sophisticated power management system constantly decides which power source to use based on driving conditions, battery state of charge, temperature, and driver demand. During gentle acceleration from stops, the vehicle operates in pure electric mode using only the traction battery and electric motors with the gasoline engine remaining off. During harder acceleration or highway cruising, both the engine and electric motors work together with the battery supplementing engine power. During deceleration, the electric motors function as generators capturing kinetic energy and converting it to electricity stored in the traction battery rather than wasting this energy as heat through conventional braking.
The RAV4 Prime’s plug-in hybrid system operates similarly but with substantially more emphasis on electric driving given its larger 18.1 kWh battery capacity. When fully charged, the Prime can operate in pure electric mode for 42 miles at speeds up to 84 mph, using zero gasoline for typical daily commuting. Only after depleting the battery does the Prime operate like a conventional RAV4 Hybrid, using the gasoline engine as the primary power source while the electric system provides supplemental power and regenerative braking. This plug-in capability makes the traction battery even more critical to the Prime’s value proposition and potentially more vulnerable to issues from charging system problems.
The battery’s state of charge (SOC) is carefully managed by the battery management system (BMS), which maintains charge levels within optimal ranges preventing both complete discharge and complete charging that would stress battery cells and accelerate degradation. In the RAV4 Hybrid, the BMS typically maintains SOC between 40-80% of total capacity, using only the middle portion of available capacity where battery chemistry remains most stable. The Prime uses a wider SOC range (roughly 20-90%) when operating in electric mode to maximize electric driving range, but still avoids the extreme top and bottom charge levels that cause the most stress to lithium-ion cells.
The Battery Management System: Your Traction Battery’s Guardian
The battery management system represents sophisticated computer control monitoring hundreds of parameters continuously to ensure the traction battery operates safely and efficiently while protecting against conditions that could cause degradation or damage. The BMS monitors individual cell voltages ensuring balanced charging and preventing any single cell from being over or undercharged, battery pack temperature at multiple sensor locations detecting hot spots or inadequate cooling, current flow in and out of the battery preventing excessive charge or discharge rates, overall state of charge tracking available energy, and isolation resistance verifying the high-voltage system remains properly isolated from the vehicle chassis preventing electrical shock hazards.
When the BMS detects conditions outside acceptable parameters, it implements protective measures designed to prevent battery damage. These protective responses might include reducing available power output limiting how hard the electric motors can work, restricting regenerative braking reducing how much energy is captured during deceleration, displaying warning messages alerting the driver to suboptimal conditions, and in extreme cases, disabling hybrid system operation entirely forcing the vehicle to operate on the gasoline engine alone. The “Traction Battery Needs to Be Protected” warning represents one of these protective responses indicating the BMS has detected concerning conditions.
The BMS operates with multiple layers of protection reflecting the conservative design philosophy Toyota employs for hybrid system reliability. Early-stage warnings appear when conditions merely approach concerning levels rather than waiting until damage occurs. Intermediate-level protection restricts certain operations without completely disabling the hybrid system, allowing continued driving with reduced performance. Final-stage protection completely disables the traction battery isolating it from the system if conditions become so severe that continued operation risks safety or catastrophic damage. This layered approach maximizes both safety and continued vehicle functionality.
Critically, the BMS can display “Traction Battery Needs to Be Protected” in response to dozens of different underlying conditions, making the warning itself non-specific regarding actual root causes. This generic messaging simplifies the driver interface—Toyota doesn’t want dozens of different battery warning messages confusing owners—but requires diagnostic procedures using specialized scan tools that can read specific fault codes stored in the BMS memory identifying exactly which parameter triggered the warning. Without these diagnostic codes, determining the actual problem resembles medical diagnosis based only on “patient doesn’t feel well” without further symptoms or test results.
Common Conditions Triggering the Traction Battery Protection Warning
Understanding which specific situations typically generate this warning helps owners recognize patterns, take appropriate immediate actions, and provide useful information to service technicians during diagnosis.
Extreme Temperature Conditions: Heat and Cold
High ambient temperatures represent one of the most common triggers for the traction battery protection warning, as battery chemistry operates optimally within relatively narrow temperature ranges and excessive heat accelerates degradation while potentially causing safety concerns. Lithium-ion batteries in the RAV4 Prime are particularly sensitive to heat, with optimal operating temperatures around 60-80°F and concerning conditions developing above 110-120°F. Nickel-metal hydride batteries in the RAV4 Hybrid tolerate slightly higher temperatures but still face degradation above 120-140°F.
The warning might appear during summer months when vehicles sit in direct sunlight with dark interiors reaching 150-170°F internally, heating the battery pack through conduction from the vehicle body despite thermal insulation. Dashboard temperatures can exceed 180°F in extreme conditions, with heat radiating through the vehicle heating all components including the traction battery. The BMS detects elevated battery temperatures through multiple sensors and displays the protection warning even before temperatures reach levels causing immediate damage, implementing precautionary power restrictions until temperatures moderate.
Sustained high-power operation in hot weather compounds temperature concerns as battery charging and discharging generate internal heat adding to environmental heat loads. Hard acceleration repeatedly demanding maximum power from the battery, extended highway driving at high speeds maintaining continuous power draw, or mountain climbing requiring sustained power output all generate substantial internal battery heating. When this internal heat generation occurs in 95°F+ ambient temperatures, the cooling system may struggle to maintain battery temperatures within optimal ranges triggering protection warnings.
Cold weather creates different but equally concerning conditions affecting battery chemistry and performance. Lithium-ion batteries in the RAV4 Prime lose substantial capacity at low temperatures, with available power potentially dropping 30-50% when battery temperatures fall below 32°F due to increased internal resistance slowing chemical reactions. The BMS implements power restrictions protecting battery cells from damage that could occur if high-power demands are placed on cold batteries with limited ability to deliver current safely.
Repeated cold starts without adequate battery warm-up can trigger protection warnings, particularly if owners immediately demand hard acceleration before the battery management system has brought temperatures into optimal ranges. The hybrid system includes battery heaters that warm the pack using electricity from the 12-volt system or recovered engine heat, but this warming takes time—often 10-20 minutes of operation before batteries reach full performance temperatures. Aggressive driving during this warm-up period can trigger protection warnings as the BMS detects power demands exceeding what cold batteries can safely deliver.
Cooling System Problems and Blocked Ventilation
The traction battery’s thermal management system proves critical for maintaining optimal operating temperatures, with failures or blockages in this cooling system being among the most common causes of protection warnings. The RAV4 Hybrid uses a forced-air cooling system with fans drawing cabin air through ventilation ducts to the battery pack, circulating air around battery modules absorbing heat, then exhausting this heated air outside the vehicle. Blocked air intakes, failed cooling fans, or obstructed exhaust outlets can dramatically reduce cooling effectiveness causing rapid temperature increases during operation.
The battery cooling air intake is located in the right rear quarter panel on RAV4 Hybrids (behind the rear seat in RAV4 Primes), with a filter preventing debris from entering the cooling system. This filter—often overlooked during routine maintenance—can become clogged with dust, pet hair, leaves, or other debris restricting airflow and reducing cooling capacity by 30-70%. Toyota recommends inspecting and cleaning this filter every 10,000 miles, though the actual maintenance interval depends heavily on operating environment. Vehicles operating in dusty conditions, carrying pets, or parked under trees may require much more frequent filter service.
Signs that battery cooling system problems may be causing warnings include: The protection warning appearing primarily during sustained driving or hot weather when cooling demands are highest, hearing reduced or absent fan noise from the rear of the vehicle when the hybrid system is operating under load, feeling warm or hot air around the rear seat area where battery cooling exhaust exits, or finding debris, pet hair, or obstruction around the battery cooling intake and filter areas. These symptoms suggest cooling system investigation should be a diagnostic priority.
The RAV4 Prime’s liquid cooling system proves more complex than the air-cooled Hybrid system, using coolant circulating through channels in the battery pack absorbing heat, then passing through a dedicated radiator where heat dissipates to outside air. This system includes coolant pumps, radiators, temperature sensors, and control valves—any of which can fail causing inadequate battery cooling. Coolant leaks, air pockets in the cooling system, failed pumps, or corroded radiator passages all reduce cooling effectiveness potentially triggering protection warnings during high-demand operation.
Electrical System Issues and Battery Cell Imbalance
Battery cell voltage imbalance represents a concerning condition where individual cells within the battery pack develop different voltage levels despite being connected in series and receiving theoretically identical charging and discharging. Healthy battery packs maintain all cells within millivolts of each other, but degraded cells, manufacturing defects, or temperature variations can cause some cells to charge faster or discharge more deeply than others. When voltage imbalance exceeds programmed thresholds (typically 50-100 millivolts difference between highest and lowest cells), the BMS displays protection warnings and implements power restrictions.
Cell imbalance occurs naturally over time as manufacturing variations and slightly different degradation rates cause cells to diverge from perfect uniformity. Modern BMS systems include cell balancing capabilities that slowly equalize voltages through resistive discharge of higher-voltage cells or strategic charging patterns favoring low-voltage cells, but these balancing processes work slowly over hundreds of charge-discharge cycles. Severe imbalance might indicate failing cells requiring battery pack repair or replacement, though minor imbalance often resolves through software-controlled balancing without hardware intervention.
High-voltage system isolation faults represent serious electrical problems where the traction battery’s high-voltage circuits develop electrical leakage to the vehicle chassis, creating shock hazards and potentially damaging electrical components. The BMS continuously monitors isolation resistance—measuring electrical resistance between high-voltage circuits and ground—with values typically exceeding 100 megohms indicating proper isolation. When isolation resistance drops below 50-100 megohms, the BMS triggers protection warnings and may disable the hybrid system entirely to prevent shock hazards.
Common causes of isolation faults include: Moisture intrusion into high-voltage connectors or junction boxes allowing current leakage paths, damaged high-voltage cable insulation from vibration or wear exposing conductors, corrosion in battery cooling systems allowing coolant to contact electrical components, and physical damage from accidents or road debris impacting high-voltage components. These faults require immediate professional diagnosis and repair as they present genuine safety hazards beyond just vehicle functionality concerns.
The vehicle’s 12-volt electrical system interacts with traction battery operation in ways that can trigger protection warnings despite the systems being electrically separate. A weak or failing 12-volt battery unable to provide adequate power for hybrid system computers and controls can cause erratic behavior including spurious warning messages. Low 12-volt system voltage during starting can prevent proper hybrid system initialization triggering fault codes. And 12-volt charging system problems can create electrical noise interfering with the BMS’s sensitive voltage measurements potentially causing false fault detection.
Software Issues and System Calibration
Like all modern vehicle systems, the traction battery management system operates on embedded software that occasionally contains bugs, develops corrupted data, or loses calibration causing spurious warnings despite no actual hardware problems existing. Software glitches might cause the BMS to misinterpret sensor readings, incorrectly calculate battery parameters, or trigger protection warnings based on erroneous data. These software-related warnings typically appear intermittently without clear patterns related to driving conditions, temperature, or other environmental factors.
Toyota periodically releases software updates addressing known BMS issues, improving algorithm accuracy, or updating protection thresholds based on field experience with battery degradation patterns. Vehicles that haven’t received the latest software updates may display warnings that updated software would prevent, or may fail to properly protect against conditions that newer calibrations handle better. Checking for and installing applicable software updates represents a standard diagnostic step that sometimes resolves protection warnings without any hardware repairs.
Battery state of charge estimation errors can trigger protection warnings if the BMS loses accurate tracking of how much energy remains in the battery. The BMS estimates SOC through voltage measurements, current integration (tracking all energy in and out), and temperature-compensated models, but these calculations can drift over time becoming inaccurate. When the BMS becomes uncertain about actual SOC, it may display protection warnings and restrict operation to prevent potentially damaging operations like attempting to charge an already-full battery or discharge a nearly-empty pack beyond safe limits.
Recalibration procedures involving full charge-discharge cycles can restore accurate SOC tracking, with technicians following specific driving patterns that allow the BMS to relearn actual battery capacity and recalibrate its internal models. Some RAV4 Prime owners report protection warnings resolving after extended highway drives fully depleting the battery then recharging to 100%, suggesting SOC calibration drift as the issue. However, attempting such procedures without guidance risks causing actual battery problems if done incorrectly, making professional diagnosis preferable to DIY experimentation.
Immediate Actions When the Warning Appears
When the “Traction Battery Needs to Be Protected” warning illuminates, taking appropriate immediate actions can prevent escalating problems while ensuring safety and gathering useful diagnostic information for service visits.
Assessing Urgency and Drivability
The protection warning’s appearance typically does not indicate immediate danger requiring emergency pull-over unless accompanied by additional symptoms like complete loss of power, strong burning smells, smoke, or unusual sounds from the battery area. Unlike engine oil pressure warnings that demand immediate shutdown, the traction battery warning usually allows continued driving to safe destinations with reduced hybrid system functionality. The vehicle remains capable of operation using the gasoline engine alone even if the battery system completely disables, though fuel economy and acceleration will suffer.
However, you should reduce driving demands when this warning appears, avoiding hard acceleration, sustained high speeds, or conditions requiring maximum power output. Operate the vehicle gently allowing the gasoline engine to provide primary power while giving the hybrid system reduced workload. This conservative driving approach allows battery temperatures to moderate if overheating triggered the warning, reduces stress on cells if electrical issues are present, and prevents potentially exacerbating whatever condition caused the warning.
Monitor for additional symptoms or warning lights that might indicate escalating problems requiring immediate attention. If the protection warning is accompanied by a red warning light (versus amber/yellow), if you smell burning plastic or chemicals, if the vehicle displays multiple warning messages simultaneously, or if you experience complete loss of power or inability to accelerate, pull over safely and arrange for towing rather than continuing to drive. These symptoms might indicate serious electrical or thermal problems where continued operation risks battery damage, fire, or leaving you stranded in dangerous locations.
Document the exact circumstances when the warning appeared including outside temperature, type of driving (city/highway), how long you’d been driving, whether you were accelerating hard or climbing hills, cargo load, and whether the air conditioning or heating was running at maximum. This contextual information helps service technicians narrow diagnostic possibilities and reproduce conditions if the warning has cleared by the time you reach the dealer. Take photos of the warning message and any accompanying information on the dashboard display.
Temperature-Related Response Procedures
If you suspect overheating triggered the warning based on hot weather operation, hard driving, or warning appearance after extended highway travel, taking immediate cooling steps might resolve the issue without requiring service. Pull into shaded parking when possible, turn off the vehicle allowing the traction battery cooling system to continue operating for its programmed post-shutdown period (typically 10-30 minutes), and avoid restarting the vehicle until it has cooled substantially. Opening windows or doors increases cabin ventilation potentially aiding battery cooling in air-cooled RAV4 Hybrids.
Consider whether cargo or rear seat obstructions might be blocking battery cooling air intake, particularly if you’ve recently transported large items, multiple passengers, or pets in the rear seat area. Check the cooling air intake (right rear quarter panel on Hybrids, behind rear seat on Primes) for obvious blockages, pet hair accumulation, or debris restriction. While you shouldn’t attempt to disassemble cooling system components, clearing obvious intake blockages might restore adequate cooling resolving the warning.
In cold weather conditions, allowing extended warm-up time before demanding power might prevent warnings related to cold battery operation. After starting in freezing temperatures, drive gently for the first 10-15 minutes allowing the battery heating system to bring the pack to operating temperature before using full acceleration or maximum regenerative braking. The battery temperature display (if your RAV4 has this feature on the energy flow screen) should show the battery moving from cold to normal temperature ranges during this warm-up.
Repeated temperature-related warnings warrant service attention even if they resolve temporarily through cooling or warm-up, as they might indicate degrading cooling system performance, failing temperature sensors, or other developing problems that will worsen over time. What starts as occasional warnings during extreme conditions might progress to warnings during normal driving as underlying problems deteriorate.
Safe Driving to Service Facility
When the warning persists or returns after temporary resolution, schedule service promptly rather than ignoring the issue hoping it resolves permanently. While the hybrid system’s protective nature means immediate damage is unlikely, continued operation with recurring warnings risks actual battery harm, progressive degradation, or eventual more expensive repairs. Most warnings relate to conditions the battery management system can’t correct on its own, requiring technician diagnosis and intervention.
During the drive to your service appointment, operate conservatively minimizing hybrid system demands and stress on the traction battery. Avoid rapid acceleration that requires maximum electric motor power, limit highway speeds to 60-65 mph reducing continuous power draw, use gentle braking allowing conventional brakes to work rather than aggressive regenerative braking, avoid mountain driving or grades requiring sustained power, and keep the cabin climate control at moderate settings reducing electrical loads. This gentle operation protects the battery while still allowing you to reach service without needing towing.
If the warning escalates to red status or the hybrid system disables entirely with the vehicle operating solely on the gasoline engine, the urgency increases substantially. While the vehicle remains drivable in gasoline-only mode, efficiency drops dramatically and the underlying problem might be severe. Call ahead to your Toyota dealer describing symptoms so they can prepare appropriate diagnostic equipment and schedule adequate time, and consider whether towing is preferable to extended driving in compromised condition, particularly for longer distances or in extreme weather.
Warranty Coverage Considerations
The Toyota hybrid battery warranty covers the traction battery for 10 years/150,000 miles in states following California emission regulations (about 10-12 states) or 8 years/100,000 miles in other states. This warranty specifically covers battery capacity loss exceeding 30% and component failures within the hybrid battery system. If your RAV4 remains within warranty coverage, any repairs related to the traction battery protection warning will likely be covered at no cost to you provided the problem isn’t caused by abuse, accident damage, or lack of proper maintenance.
Document and save all service records related to the warning and any repairs performed, as this documentation provides proof of warranty claim history should future problems develop. If the warning appears on a vehicle still under warranty, insist on thorough diagnosis even if the warning has temporarily cleared, ensuring Toyota identifies and addresses root causes rather than just clearing fault codes and returning the vehicle. Problems inadequately addressed under warranty may recur after warranty expiration, leaving you responsible for expensive repairs that should have been properly fixed while coverage applied.
Extended warranty or service contract coverage varies in how comprehensively it addresses hybrid system problems, with some contracts excluding battery components or high-voltage systems entirely while others provide coverage comparable to factory warranties. Review your extended warranty terms if applicable, confirming whether traction battery repairs are covered and under what circumstances. Some aftermarket warranties require using specific repair facilities or obtaining pre-authorization before repairs, making advance verification important before incurring diagnostic costs.
Professional Diagnosis: What Technicians Do
Understanding the diagnostic process helps you appreciate the complexity involved, recognize thorough versus cursory diagnosis, and make informed decisions about repair options when problems are identified.
Diagnostic Scan Tools and Fault Code Reading
Professional diagnosis begins with specialized scan tools capable of communicating with the RAV4’s battery management system and reading detailed diagnostic trouble codes (DTCs) that generic code readers cannot access. Toyota’s Techstream system (factory diagnostic software) or equivalent professional-grade tools can retrieve specific fault codes identifying exactly which parameter triggered the protection warning, including codes like P0A80 (Replace Hybrid Battery Pack), P0A1F (Hybrid Battery Voltage System Isolation Fault), P3011 (HV Battery Temperature Sensor Range/Performance), or dozens of others indicating specific problems.
The diagnostic trouble codes stored in BMS memory include: Permanent codes indicating confirmed failures requiring repair, pending codes suggesting intermittent conditions that haven’t met fault criteria for permanent code setting, historical codes showing previous conditions that have since resolved, and freeze frame data capturing exact operating conditions when faults occurred including temperature, voltage, current, state of charge, and vehicle speed. This comprehensive data provides technicians detailed information about when and under what circumstances problems occur, dramatically narrowing diagnostic possibilities.
Code reading alone doesn’t constitute complete diagnosis, as codes identify symptoms rather than root causes. A temperature sensor fault code might indicate a failed sensor requiring replacement or might result from actual temperature problems caused by blocked cooling that the sensor is correctly reporting. Cell voltage imbalance codes might indicate failing battery cells or might result from corroded wiring connections creating resistance affecting voltage measurements. Experienced technicians use fault codes as starting points for deeper investigation rather than immediately replacing components the codes reference.
Baseline data comparison proves essential for evaluating whether battery parameters remain within normal ranges. Technicians compare current measurements against Toyota’s specifications and typical values for similar-age vehicles, assessing individual cell voltages for balance (all cells should be within 50-100 millivolts), battery pack temperatures for uniformity (all sensors should read within 5-10°F), isolation resistance values for adequate electrical separation, state of charge accuracy through voltage-SOC correlation, and charge-discharge current patterns for anomalies suggesting cell degradation. Deviations from expected values guide investigation toward specific subsystems.
Physical Inspection and System Testing
Visual inspection of the high-voltage battery system identifies obvious problems like damaged cooling system components, corroded connectors, fluid leaks around liquid-cooled systems, or physical damage to the battery enclosure from road debris or accidents. Technicians inspect the battery cooling air filter for blockages, cooling fan operation for proper function, high-voltage connectors for corrosion or looseness, wiring harnesses for damage or chafing, and battery enclosure for damage, deformation, or water intrusion evidence.
Cooling system performance testing verifies adequate thermal management capacity by monitoring battery temperatures during simulated high-load conditions, measuring cooling airflow volumes at battery intake and exhaust points, testing cooling fans for proper operation at various speeds, checking coolant flow rates and temperatures in liquid-cooled systems, and verifying temperature sensor accuracy through comparison with known-accurate reference instruments. Cooling system problems causing protection warnings often become obvious during these performance tests even if no fault codes are stored.
High-voltage isolation testing measures electrical resistance between the traction battery’s high-voltage circuits and the vehicle chassis, verifying that no dangerous leakage paths exist. Toyota specifications typically require minimum isolation resistance of 50-100 megohms depending on conditions, with measurements below this threshold indicating insulation breakdown, moisture intrusion, or damaged high-voltage components. Isolation testing requires specialized equipment and procedures given the lethal voltages involved, emphasizing why professional diagnosis is essential for traction battery problems.
Battery capacity and internal resistance testing evaluates whether battery cells have degraded beyond acceptable levels affecting performance and triggering protection warnings. These tests involve controlled charge-discharge cycles measuring actual energy storage capacity compared to design specifications, along with internal resistance measurements indicating how easily cells can deliver and absorb current. Significantly elevated internal resistance or reduced capacity suggests battery degradation potentially requiring pack repair or replacement.
Software Version Verification and Updates
Checking the BMS software version against Toyota’s latest releases identifies whether outdated calibration might be causing spurious warnings that updated software would prevent. Toyota periodically releases software updates through Technical Service Bulletins (TSBs) addressing specific issues discovered through field experience, improving algorithm accuracy, updating protection thresholds, or fixing software bugs. Vehicles that haven’t received applicable updates may experience problems that updated software prevents or corrects without hardware repairs.
Software update procedures involve downloading latest calibration files from Toyota’s technical information system, connecting the vehicle to programming equipment, uploading new software to the battery management system and related controllers, and verifying successful update installation through diagnostic system checks. The process typically takes 30-90 minutes depending on update complexity, though some updates require specific battery state of charge or temperature conditions before installation can proceed.
After software updates, the BMS may require recalibration through specific driving patterns allowing the updated software to learn battery characteristics and adjust protection algorithms accordingly. This recalibration might involve driving extended distances to fully discharge then recharge the battery, or specific charge-discharge patterns that expose the BMS to full battery operating ranges enabling accurate parameter learning. Technicians should provide owners with post-update driving instructions ensuring proper system adaptation.
Common Problems and Their Solutions
Understanding the most frequent causes of traction battery protection warnings and their typical resolution paths helps owners set realistic expectations for diagnosis time, repair complexity, and costs.
Blocked Battery Cooling Filter: The Most Common Culprit
The battery cooling air filter represents the single most common cause of traction battery protection warnings on RAV4 Hybrids, with restricted airflow from clogged filters reducing cooling capacity by 40-70% causing overheating during sustained operation. This problem proves particularly common in vehicles with pets, those operated in dusty environments, or when maintenance schedules don’t include regular filter inspection. The filter’s location behind a trim panel makes it out-of-sight-out-of-mind for many owners and even some technicians unfamiliar with hybrid-specific maintenance requirements.
Symptoms suggesting filter blockage include: Protection warnings appearing primarily during hot weather or sustained highway driving, gradual progression from rare warnings to frequent occurrence over months, warnings resolving temporarily after vehicle cooling but recurring during next drive session, and reduced or absent cooling fan noise from rear of vehicle despite high-load operation. If inspection reveals a heavily clogged filter, replacement or cleaning typically costs just $50-$150 and immediately resolves the problem without further repair needs.
Filter maintenance intervals depend heavily on operating environment, with Toyota’s 10,000-mile recommendation proving inadequate for some vehicles. Pet owners should inspect filters every 5,000 miles or more frequently given how effectively pet hair clogs ventilation systems. Vehicles in agricultural areas, construction zones, or other dusty environments similarly need accelerated filter service. Some owners report installing washable aftermarket filters allowing cleaning and reuse rather than replacement, reducing long-term maintenance costs while ensuring adequate filtration.
Prevention through regular inspection proves far preferable to dealing with consequences of cooling system blockage, as sustained operation with restricted cooling accelerates battery degradation even if protection warnings prevent immediate damage. Owners comfortable with basic vehicle maintenance can access and inspect the filter themselves following procedures in the owner’s manual or online tutorials, making this preventive maintenance accessible without professional service.
Battery Cell Voltage Imbalance
When diagnostic testing reveals significant cell voltage imbalance—typically differences exceeding 100-200 millivolts between highest and lowest cells—several resolution paths exist depending on imbalance severity and root causes. Minor imbalance (50-100 mV differences) often resolves through software-controlled cell balancing procedures that strategically charge and discharge individual cell groups equalizing voltages over multiple drive cycles. This software-based solution requires no parts and minimal labor, costing perhaps $100-200 for diagnosis and balancing procedure implementation.
Moderate imbalance (100-300 mV) might require manual balancing where technicians connect specialized equipment directly to battery modules, measuring individual cell voltages and implementing controlled charging or discharge of specific cells bringing them to uniform levels. This procedure proves more time-intensive than automated balancing, typically requiring 2-4 hours of labor plus equipment time, generating costs of $300-600. Success depends on whether the imbalance results from charging history patterns versus actual cell degradation.
Severe imbalance (>300 mV) or imbalance accompanied by significantly reduced cell capacity often indicates failing cells requiring module replacement rather than balancing. The RAV4’s modular battery design allows replacing individual modules (groups of 6 cells) containing failed cells rather than replacing the entire battery pack, reducing repair costs substantially. Module replacement involves high-voltage system shutdown and lockout procedures, removing failed modules, installing replacement modules, and system verification, typically costing $1,500-$3,000 per module depending on whether new or remanufactured modules are used.
Root cause identification proves essential for preventing recurrence, as voltage imbalance sometimes results from external factors like unbalanced charging (in RAV4 Prime particularly), temperature variation across the battery pack from cooling system problems, or manufacturing defects in specific cell batches. Addressing these underlying causes prevents newly balanced or replaced cells from developing similar problems, making comprehensive diagnosis important before authorizing repairs.
High-Voltage System Isolation Faults
Isolation resistance problems require careful diagnosis identifying where current leakage occurs between high-voltage circuits and vehicle chassis, as the battery pack, high-voltage cables, inverters, motors, and charging system (on Primes) all contain high-voltage components that could develop isolation faults. Technicians use specialized high-voltage insulation testers measuring resistance at various points throughout the high-voltage system, systematically isolating subsystems until the fault location is identified.
Common isolation fault causes include: Moisture in high-voltage connectors from water intrusion through damaged seals, damaged cable insulation from abrasion, wear, or accident damage, corroded connections allowing current leakage through corrosion products, coolant leaks in liquid-cooled systems allowing conductive fluid to contact electrical components, and physical damage to high-voltage components from road debris or collision. Each cause requires different repair approaches ranging from connector cleaning and seal replacement ($200-400) to cable replacement ($500-1,500) or component replacement ($1,000-$3,000+).
Drying procedures sometimes resolve moisture-related isolation faults without parts replacement if caught early before corrosion develops. Technicians might disassemble affected connectors, clean and dry components, apply dielectric grease preventing future moisture intrusion, and reassemble with new seals. However, if moisture exposure has caused corrosion, component replacement becomes necessary as corroded high-voltage connections present both safety and reliability concerns.
Isolation faults represent genuine safety hazards making repair urgency higher than many other protection warning causes. Operating vehicles with isolation resistance below specifications creates electrical shock risks during service or in accidents where high-voltage components might be exposed. Toyota may refuse to work on vehicles with isolation faults until repairs restore proper isolation, and some insurers might consider operation with known isolation faults as negligence affecting liability coverage.
Software Calibration Issues and Updates
When hardware testing reveals no problems but protection warnings persist, outdated or corrupted software calibration becomes the likely culprit. Technicians check for applicable Technical Service Bulletins describing software updates addressing battery management issues, verify current software versions against latest releases, and perform software updates if newer calibrations are available. Software updates typically cost $100-300 for diagnosis and update installation, making this among the least expensive resolution paths when applicable.
Specific TSBs have addressed various BMS issues on RAV4 Hybrids and Primes including false temperature warnings from sensor calibration errors, incorrect state of charge calculations causing premature protection activation, overly aggressive protection thresholds triggering warnings before actual risk exists, and software bugs causing intermittent spurious warnings without corresponding hardware problems. Owners experiencing protection warnings should specifically ask service advisors whether any open TSBs apply to their vehicle’s symptoms before authorizing expensive hardware repairs.
Battery system relearning procedures sometimes resolve warnings that result from the BMS losing accurate calibration of battery characteristics over time. These procedures involve specific driving patterns or charge-discharge cycles that expose the BMS to battery operation across full ranges allowing the software to recalibrate its internal models. Some RAV4 Prime owners report warnings resolving after multiple full battery depletions followed by complete recharges, suggesting SOC calibration drift that the full cycles corrected. However, attempting such procedures without professional guidance risks battery damage if performed incorrectly.
Cooling System Component Failures
Beyond filter blockage, mechanical cooling system failures can trigger protection warnings including failed cooling fans unable to move adequate air through the battery pack, clogged or leaking coolant passages in liquid-cooled systems (RAV4 Prime), failed coolant pumps in Prime cooling systems, or failed temperature sensors preventing accurate thermal monitoring. These mechanical failures require component replacement with costs varying by part: cooling fans $300-600, coolant pumps $400-800, temperature sensors $150-400, and coolant system repairs $500-$2,000 depending on leak location and damage extent.
Cooling system diagnosis involves testing fan operation at various commanded speeds, measuring airflow volumes with specialized equipment, checking coolant flow rates and pressures in liquid systems, verifying temperature sensor accuracy against known standards, and pressure testing coolant systems for leaks. Intermittent cooling system failures prove particularly challenging to diagnose since problems might not be apparent during shop conditions but only manifest during sustained high-load driving impossible to replicate on lifts.
Some cooling problems result from design limitations rather than failures, particularly in RAV4 Hybrids where the air-cooling system might prove inadequate in extreme heat or with sustained high-power operation exceeding design assumptions. These situations might resolve through operational changes like avoiding sustained high-speed driving in extreme heat, using EV mode sparingly in hot weather reducing battery duty cycle, or supplementing factory cooling through aftermarket fan installations or enhanced ventilation (though modifications should be approached cautiously given warranty implications).
Preventive Maintenance and Best Practices
Proactive measures reduce the likelihood of experiencing traction battery protection warnings while maximizing battery longevity and hybrid system reliability.
Regular Cooling System Maintenance
Implementing systematic battery cooling filter inspection and cleaning at 5,000-7,500 mile intervals rather than Toyota’s 10,000-mile recommendation prevents the filter blockage that causes most protection warnings. This preventive maintenance takes just 10-20 minutes for owners comfortable with basic vehicle work, requiring only removal of rear interior trim panels accessing the filter, vacuum or compressed air cleaning, and trim reinstallation. Even owners who prefer professional service should ensure their service advisor specifically includes battery cooling filter service in maintenance schedules.
For RAV4 Prime owners, ensuring proper coolant maintenance proves essential given the liquid-cooled battery system’s dependence on coolant condition and circulation. Follow Toyota’s coolant replacement intervals (typically 100,000 miles for first change, 50,000 miles thereafter), inspect coolant levels regularly, and address any coolant leaks immediately before they compromise battery cooling. Using only Toyota-specified coolant formulations ensures compatibility with the battery cooling system’s materials and prevents corrosion or degradation.
Keeping battery cooling air intakes and exhausts clear of obstructions prevents airflow restriction even with clean filters. Avoid blocking the cooling intake (right rear quarter panel on Hybrids) with cargo, pet carriers, or items stored against the vehicle exterior. Ensure the cooling exhaust (typically underneath the vehicle rear) isn’t obstructed by mud, debris, or aftermarket modifications like skid plates not designed to accommodate hybrid cooling requirements. These measures maintain adequate ventilation allowing the cooling system to operate at design capacity.
Temperature Management During Operation
In extreme heat, taking measures to reduce battery thermal load helps prevent temperature-related protection warnings. Park in shaded areas when possible reducing cabin heat soak into the battery pack, use remote start or app-based climate preconditioning (if equipped) to cool the cabin before entering reducing initial cooling load, drive gently for the first few miles after starting in extreme heat allowing battery temperatures to stabilize, avoid extended full-throttle acceleration or sustained high-speed operation in 90°F+ conditions, and use economy modes when available reducing power demands and internal heat generation.
Cold weather operation requires patience allowing battery heating systems time to bring the pack to optimal temperature. After cold starts below 32°F, drive gently for 10-15 minutes before demanding full power, avoid aggressive regenerative braking until batteries warm into optimal ranges, and consider using remote start to begin battery warming before departure if equipped with this feature. The battery temperature indicator on the energy flow display (if present) provides feedback about thermal status helping guide operation.
Climate control strategies affect battery thermal management, with excessive cabin heating or cooling demands indirectly impacting battery operation. Using seat heaters and steering wheel warmers rather than maximum cabin heat in cold weather reduces power draw allowing more energy for battery warming. Moderate climate control settings in summer reduce electrical loads helping the cooling system maintain battery temperatures. These small adjustments create operating conditions conducive to optimal battery thermal management.
Charging Best Practices (RAV4 Prime)
For RAV4 Prime owners, following optimal charging practices maximizes battery longevity and reduces stress that could trigger protection warnings. Avoid repeatedly charging to 100% unless you need full electric range, as the highest charge levels stress lithium-ion chemistry—targeting 80-90% for routine daily charging extends battery life. Similarly, avoid regularly depleting the battery completely before recharging, as very low charge levels also stress cells. The battery performs best when operated between 20-80% charge except when full range is actually needed.
Charging speed considerations balance convenience and battery health, with Level 1 charging (standard household outlet) generating the least battery stress but requiring 10-14 hours for full charges, while Level 2 charging (240-volt) completes in 4.5 hours but generates more internal heat during charging. For routine overnight charging where time isn’t critical, Level 1 charging provides gentler treatment. Reserve Level 2 for situations where faster charging is actually necessary rather than just convenient.
Temperature during charging affects battery stress and efficiency, with charging in extreme heat or cold being less optimal than charging in moderate temperatures. When possible, schedule charging for mild temperature periods like overnight in summer when ambient temperatures moderate, or during afternoon in winter when temperatures peak. RAV4 Prime’s battery thermal management operates during charging, but helping maintain moderate temperatures through charge timing reduces thermal management loads and associated energy costs.
Avoid letting the Prime sit with very low state of charge for extended periods, as lithium-ion batteries experience accelerated degradation when stored in deeply discharged states. If you won’t be driving for weeks, charge to 60-70% before storage rather than leaving the battery depleted. The hybrid system’s parasitic draw is minimal but not zero, so very extended storage (2-3+ months) might require brief charge session preventing complete depletion.
Regular Professional Inspection
Including hybrid system health checks in routine maintenance visits provides opportunities for early problem detection before protection warnings occur. Ask service advisors to specifically scan the battery management system for stored codes even if no warning messages are active, review battery data for trends suggesting developing problems, inspect cooling system components including filter condition, and update software if newer calibrations are available addressing known issues.
Baseline data documentation proves valuable for tracking battery health over time, with periodic measurements of cell voltages, internal resistance, capacity, and temperatures creating historical records showing whether battery is aging normally or developing problems. Some owners maintain their own records after each service visit, tracking trends that might indicate degradation requiring eventual attention. This proactive monitoring identifies problems in early stages when simpler interventions might prevent or delay major repairs.
Warranty period vigilance proves particularly important, ensuring any developing problems are documented and addressed while coverage applies. If you notice unusual hybrid system behavior, reduced electric range (on Primes), or any intermittent warning messages, report these to your dealer for investigation even if they seem minor. Problems inadequately addressed under warranty might recur after coverage expires, leaving you responsible for expensive repairs that should have been handled under warranty.
Conclusion: Understanding and Responding to Traction Battery Protection Warnings
The “Traction Battery Needs to Be Protected” warning, while initially alarming, typically represents the RAV4’s sophisticated battery management system performing its protective function—detecting potentially problematic conditions and implementing safeguards preventing battery damage. For most RAV4 Hybrid and Prime owners encountering this warning, the underlying cause proves manageable rather than catastrophic, with many cases resulting from maintenance needs like filter blockage, temporary conditions like extreme temperatures, or software issues requiring updates rather than expensive hardware failures.
Understanding that this warning represents protection rather than damage helps maintain perspective when the message appears. The battery management system’s conservative protective philosophy means warnings often trigger before actual harm occurs, providing opportunities for corrective action preventing genuine problems. This contrasts with engines running low on oil where warnings indicate damage is already occurring, making immediate response more critical. The traction battery warning allows time for proper diagnosis and measured response rather than emergency reaction.
The most important immediate actions involve assessing whether additional concerning symptoms accompany the warning suggesting genuine emergencies versus isolated protection messages, operating the vehicle gently reducing demands on the hybrid system, documenting circumstances when the warning appeared to aid diagnosis, and scheduling professional diagnosis promptly rather than ignoring persistent warnings hoping they resolve spontaneously. These measured responses balance appropriate caution against excessive alarm, providing reasonable protection without unnecessary panic.
Professional diagnosis using specialized equipment proves essential for determining root causes and appropriate solutions, as the generic protection warning could result from dozens of different conditions requiring different repairs. Attempting to self-diagnose or implement repairs without proper high-voltage training presents both safety hazards and risks of causing additional damage through inappropriate interventions. The complexity of hybrid systems and lethal voltages involved make professional service necessary for nearly all traction battery problems beyond basic cooling filter maintenance.
Most cases resolve through relatively affordable repairs including cooling filter replacement ($50-150), software updates ($100-300), or component repairs like sensors or fans ($200-800), rather than requiring complete battery pack replacement ($5,000-8,000). Even more involved repairs like individual battery module replacement prove far less expensive than full pack replacement, with Toyota’s modular battery design enabling targeted repairs addressing only failed components. Battery replacement represents the last resort for severe degradation or damage rather than typical resolution for protection warnings.
Preventive maintenance focusing on cooling system upkeep, temperature-appropriate operation, proper charging practices (Prime), and regular professional inspection dramatically reduces likelihood of experiencing protection warnings. The vast majority of warnings result from preventable causes rather than inevitable aging or random failures, making proactive care worthwhile investment in avoiding diagnosis costs, repair expenses, and inconvenience of dealing with warning messages and associated service visits.
For RAV4 Hybrid and Prime owners, the traction battery protection warning should be viewed as the system working as designed—identifying potential concerns early, implementing safeguards preventing damage, and alerting you to conditions requiring attention. By understanding what triggers these warnings, taking appropriate immediate actions, seeking professional diagnosis when needed, and implementing preventive practices, owners can maintain healthy hybrid systems delivering the efficiency, performance, and reliability that made the RAV4 Hybrid and Prime such popular choices in the first place.
